30m Aerial Work Platform Truck
The GK30MAX Aerial Work Vehicle is a high-performance solution designed for demanding aerial operations, offering an impressive maximum working height of 30.3 meters and a working radius of 15 meters. Built on the Foton Pilot S1 chassis, it ensures a balance of stability, efficiency, and maneuverability for complex high-altitude tasks such as building maintenance, electrical installations, and large-scale equipment servicing.
Powered by the H20-120E60 Quanchai 122 HP engine, the GK30MAX delivers reliable performance, paired with a Miles Young 5-speed transmission for smooth and controlled driving. The 6.50R15LT steel wire tires and oil brake system provide solid road grip and safety, while additional comfort features like an original air conditioner, MP3 player, and power windows with central locking enhance the operator's experience.
Introduction：
The 7-section telescopic boom, featuring 6 synchronized extending sections, ensures precise and efficient reach. Designed with steel wire rope backup support, the boom prioritizes safety—ensuring that even in the rare event of a primary wire rope failure, personnel can still descend safely. The 360° infinitely rotating work platform, rated for 200 kg, further enhances operational flexibility.
Stability is a key feature of the GK30MAX, thanks to its X-shaped hydraulic outriggers, which are individually adjustable and extend to 5400mm x 5650mm. The vehicle's electro-hydraulic proportional valve system allows for precise, infinitely adjustable speed control, and an emergency power source ensures continuous operation even in unforeseen situations. The steel non-slip walking board provides additional safety and convenience during maintenance and inspections.
For maximum security, the GK30MAX is equipped with upper and lower vehicle interlocks, bi-directional hydraulic balancing valves, and an emergency power source, ensuring both personnel and equipment remain protected throughout every operation.
With its exceptional height capacity, advanced hydraulic system, and reinforced safety features, the GK30MAX Aerial Work Vehicle is a powerful tool for industries requiring precision, stability, and operational efficiency in high-altitude environments.
Parameter:
Chassis | Foton Pilot S1 | |
Total mass (kg) | 4495 | |
Overall mass (kg) | 4365 | |
engine | H20-120E60 Quanchai 122 HP engine | |
transmission | Miles Young 5-speed Transmission | |
wheelbases(mm) | 2800mm | |
Overall Dimension(mm) | 5995mm*2050mm*2800mm | |
tires | 6.50R15LT steel wire tires | |
brake | oil brake | |
other | MP3 player, original air conditioner, power windows and doors + central locking, original extractor | |
GK30MAX aerial work vehicle | Maximum operating height (m) | 30.3 |
Maximum working radius (m) | 15 | |
Platform rated load (kg) | 200 | |
Boom slewing angle | 360° | |
Platform size(mm) | 1600*700*1100 (with loaded small platform) | |
Platform rotation range | Infinite 360° rotation | |
Big arm | It features a 7-section boom with 6 synchronized telescoping sections. The boom extension is powered by steel wire ropes, which are equipped with spare ropes. Even if the main steel wire ropes break, the personnel can still be lowered down smoothly and safely. | |
operating system | Domestic well-known electronic control system, equipped with wireless remote control, three-way operation | |
Hydraulic system | Electro-hydraulic proportional valve, infinitely adjustable speed, with emergency power source | |
Hydraulic legs | X-shaped legs, 4 double-section legs, individually adjustable | |
Longitudinal and lateral span of outriggers | 5400mm*5650mm | |
aisle plate | Steel non-slip walking board | |
safety device | Upper and lower vehicle interlocks, emergency power source, bi-directional hydraulic balancing valves | |

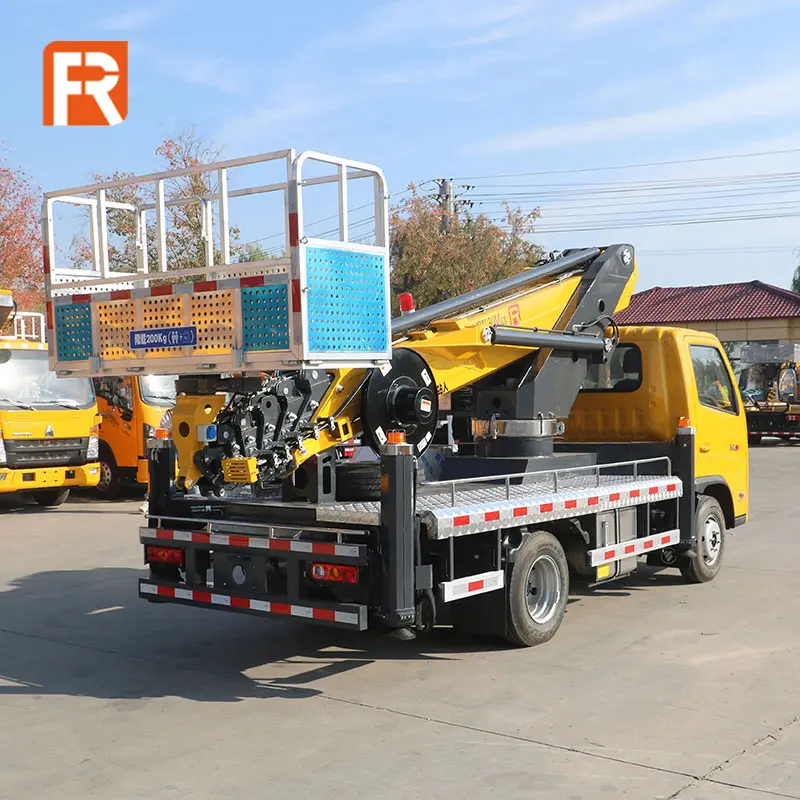

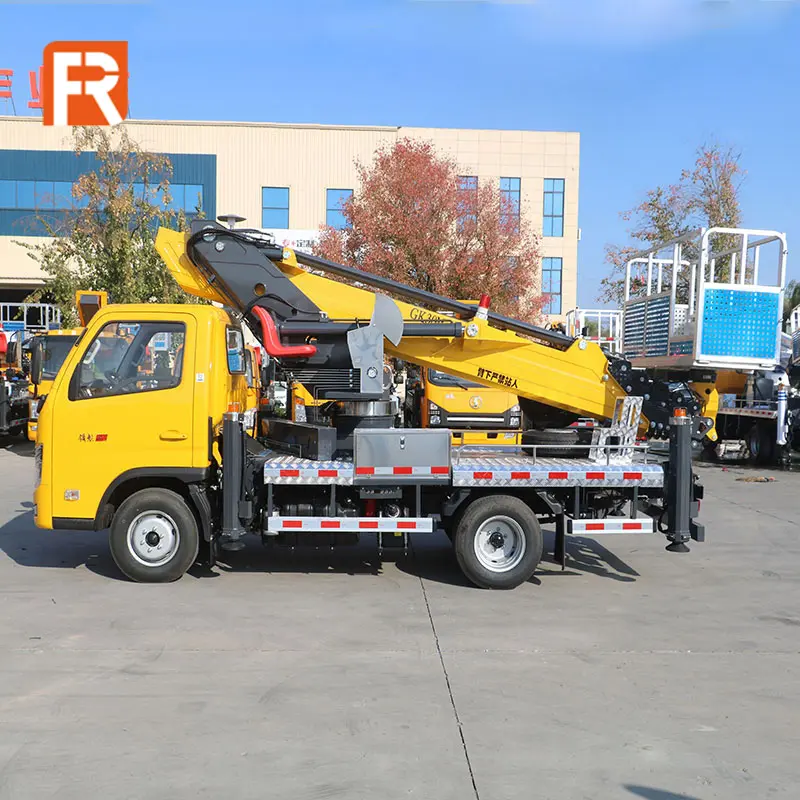

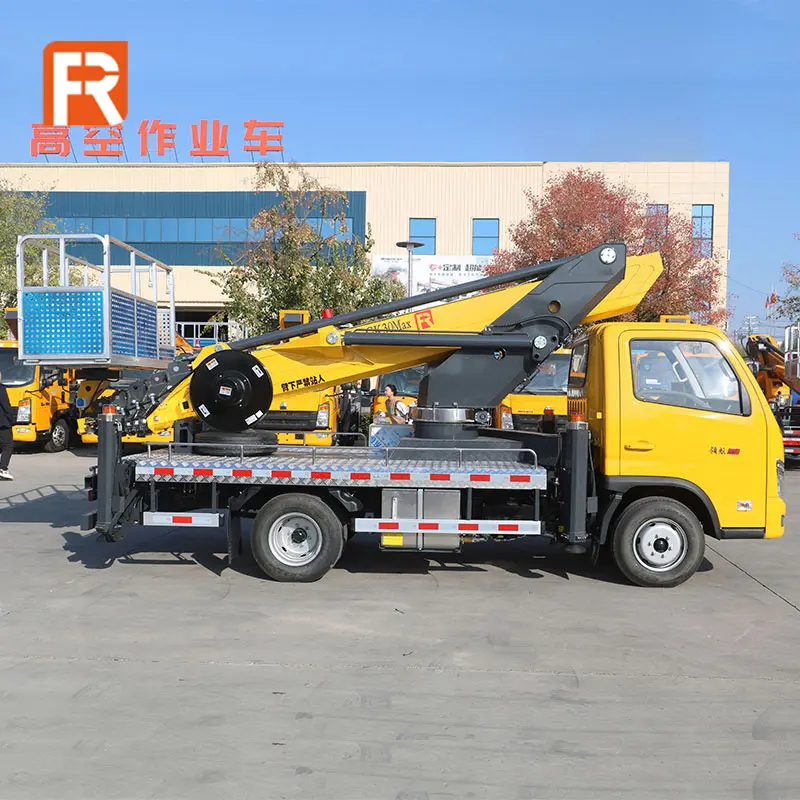

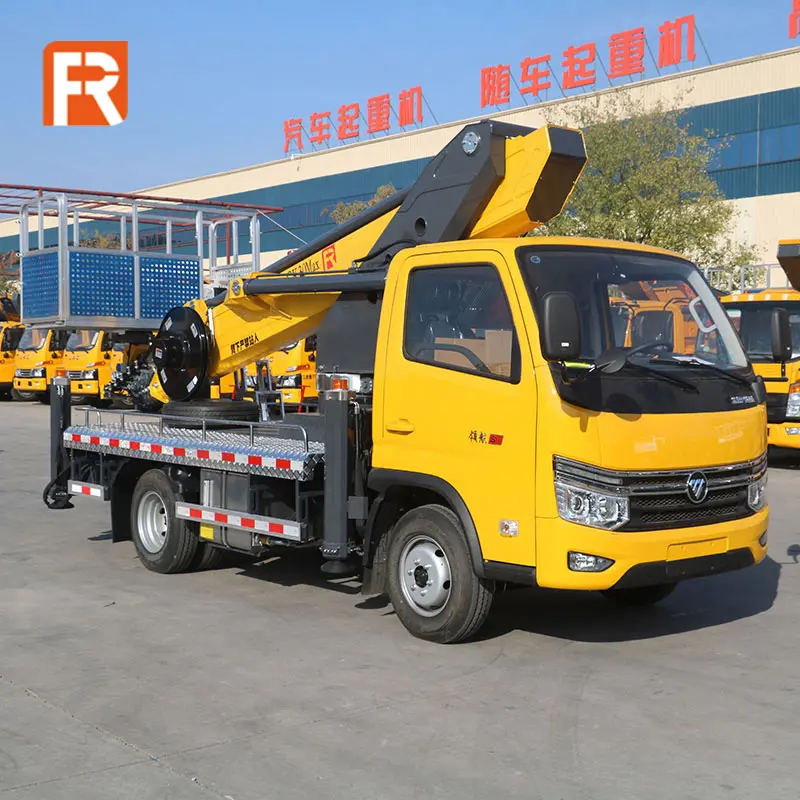

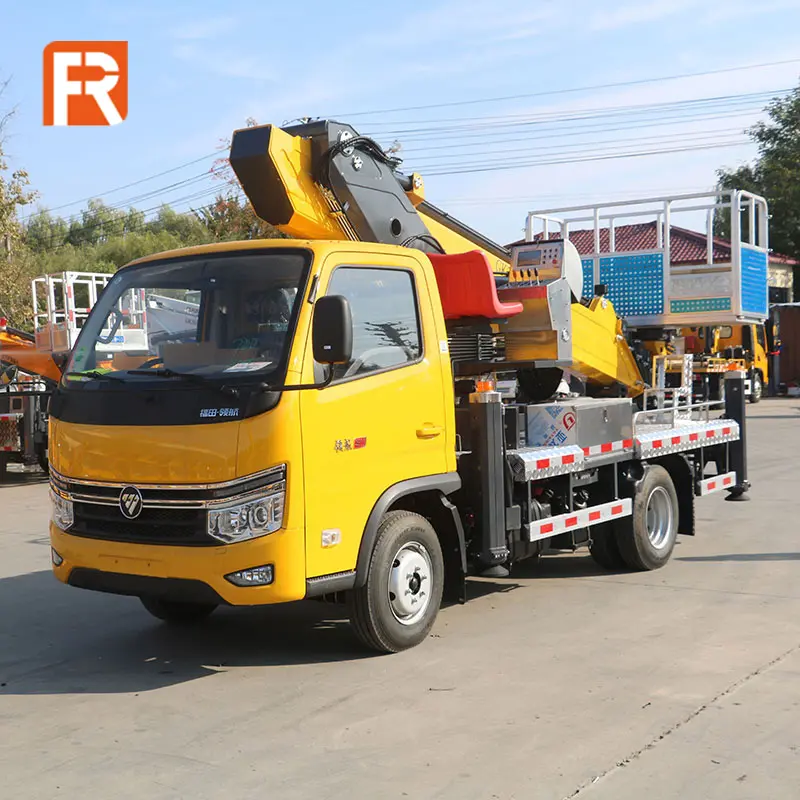

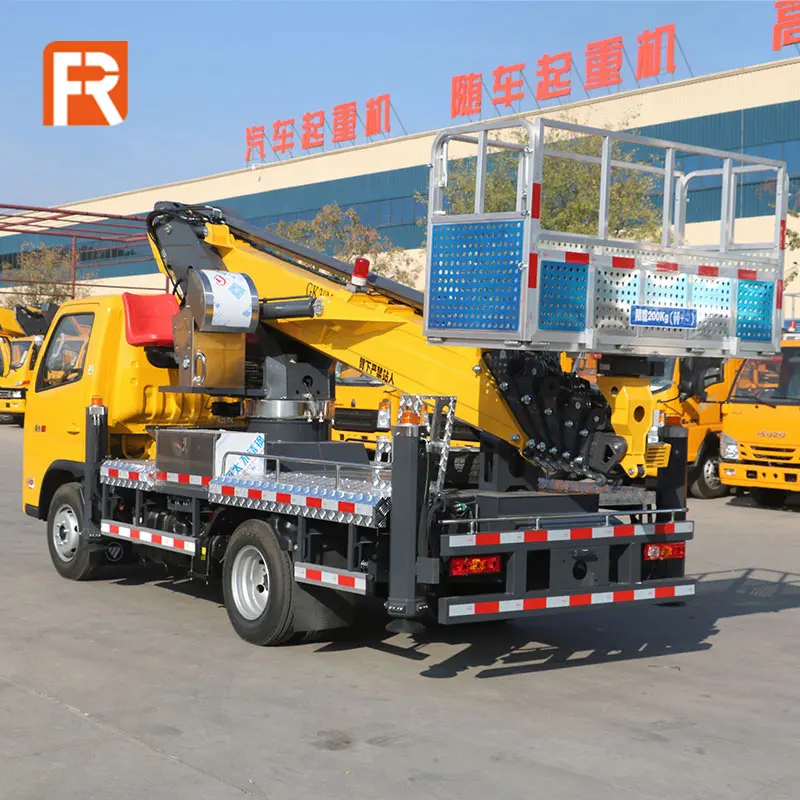

Product Photos：
